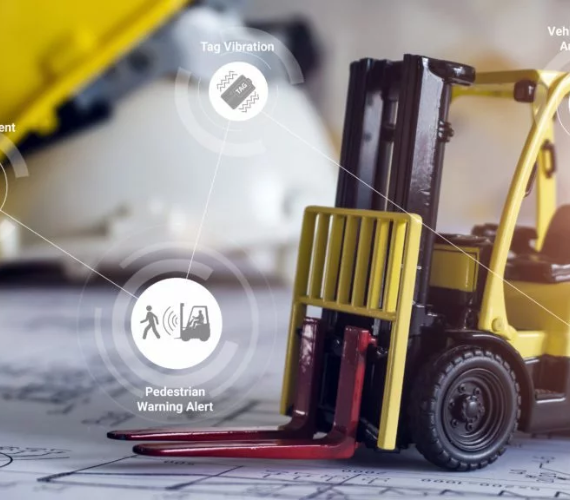

Proximity Warning

SASY (TAGLESS) PWAS FEATURES AND TECHNICAL SPECIFICATIONS

⦿ Advanced Microprocessor from Microchip technology Inc., USA

⦿ Latest generation radar technology from STmicroelectronics Switzerland, Europe.

⦿ Secure and fast automotive standard CAN BUS communication between Sensor and Controller

⦿ Large space reserved for data logging as per ARAMCO requirement. Can store up to 20,000 Logs internally.

⦿ Simple and easy procedure to transfer of logs from system. Just need a pen drive. No need of carrying laptop to the equipment.

⦿32 Bit controller for faster processing and faster detections.

⦿Detection divided into 3 zones. Low risk, Medium risk and high risk. Different alarm patter for each zone helping the equipment operator to indentify and take corrective/preventive action well in advance.

⦿Bluetooth app for customizing maximum detection distance as per equipment size. Maximum detection distance can be modified/changed using a mobile phone app.

⦿Date and time stamp on detection and event logs.

⦿Simple and robust Desktop Software for viewing the logs. Logs can be filtered for specific date range and exported to excel for future safety audits.

⦿Rugged, Light weight and designed to work in harsh conditions.

SASY CONTROLLER

⦿Compact and high performance design that accommodates proximity sensing technology, audio-visual alert controller, data logger and power supply for camera and display to reduce external wiring.

⦿Robust Anti-collision algorithm detects multiple objects at high speed.

⦿Awide angle detection range, with a configurable distance of 2 to 12 Meters from the sensor.

⦿The device can be configured via a mobile app using Bluetooth technology.

⦿Upto 10000 Events can be stored locally on the device and can be retrieved later by plugging in a USB pen drive.

⦿Dimensions : 80 mm x 120 mm x 85 mm

⦿Operating Temperature: -40°C ~ +75°C

⦿Operating Voltage: 11V-35V DC

FRONT REVERSE VEHICLE CLOSED CIRCUIT CAMERA SYSTEM

⦿The display measures 7 inches diagonally and supports live feed from upto 4 cameras.

⦿Option to switch between normal or mirrored view of live feed.

⦿Camera body is built with metal for strength & long life in harsh conditions.

⦿The camera is made up of High resolution CCD Sensor with 170 Degree Wide angle view at 10m. The rear-view camera is configured for mirror-image view on the display.

⦿The camera unit includes 18 infrared LEDs for night vision of upto 15 Meters.

⦿Separate trigger control wire for each camera

⦿Operating Temperature: -10°C ~ +75°C

⦿Operating Humidity: 20% ~ 80%

⦿Operating Voltage: Supplied by the controller unit. Nominal Input voltage range 12V-32V DC

SASY PROXIMITY DETECTION SENSOR

⦿Uses the proximity sensing technology with wide detection angle suitable for even large sized equipments.

⦿Very small size and light weight.

⦿High Shock Resistant - 10~2000 Hz, 20mm / 15 G (Triaxial)

⦿Operating Temperature: -40°C ~ +75°C

⦿Operating Humidity: 5% ~95% (non-condensing)

⦿Dimensions: 80mm x 82mm x 55mm

⦿Weight: 300 gms.
